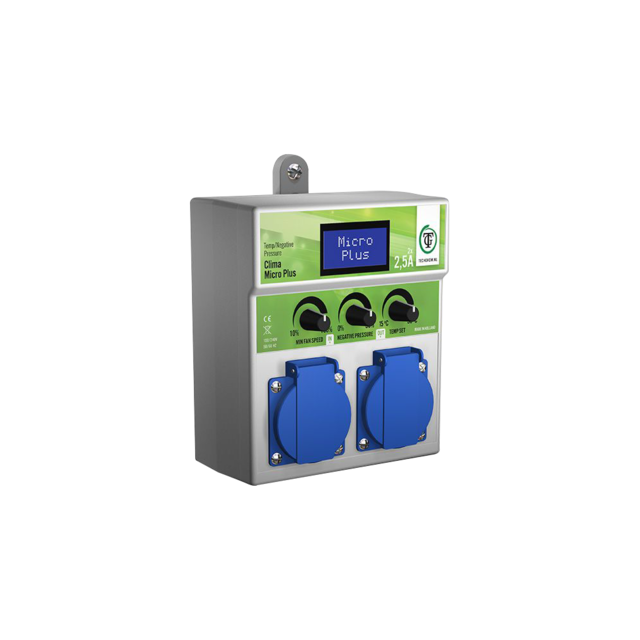

2933 TechGrow, 13071, Clima Micro Plus 2x2.5A , Negative Pressure (excl temp probe)

The Clima Micro Plus Temp/Negative Pressure Controlze controller not only regulates the minimum rotation speed of the main fan to reach or maintain the desired temperature,
but also the desired negative air pressure of the second fan for optimum air circulation.

The fan control works based on the set minimum fan speed, temperature and hysteresis, negative air pressure, and the maximum fan speed (100%).

Features:
• Regulates the minimum rotation speed of the main fan to reach or maintain the desired temperature
   and also the desired negative air pressure by means of a second fan.
• Setting range: Temperature: 15°C – 35°C
• Temperature hysteresis: 1°C – 5°C
   Negative air pressure: up to 50% of the main fan rotation speed
• Minimum fan speed: 10% – 100%
• Minimum fan speed, temperature setpoint and negative air pressure setpoint are
   retained in the event of a power failure
• Minimum sensor required: Temperature Probe

SHARED FEATURES CLIMA MICRO PLUS FAN CONTROLLERS:
• The Clima Micro Plus Controllers can measure and display the current value of the connected sensors,
   and record and display the minimum/maximum values
• Setting range: Temperature: 15°C – 35°C
• Temperature hysteresis range: 1°C – 5°C
• The display is updated every second
• Values ​​are retained in the event of a power failure
• Automatic switch-off of the display backlight after 60 seconds
• Automatic detection of cable breakage or poor contact with connected sensors
• 2 UTP ports
• Easy to replace fuse (spare fuse included)
• Minimum required sensor: Temp/RH Sensor
• Various sensors are available separately
• When no sensors are connected, these controllers always work
   at the minimum set speed. (as a simple speed controller)
