2951 TechGrow, 11541, Pro Series T-1 CO2 controller (excluding S-2 sensor)

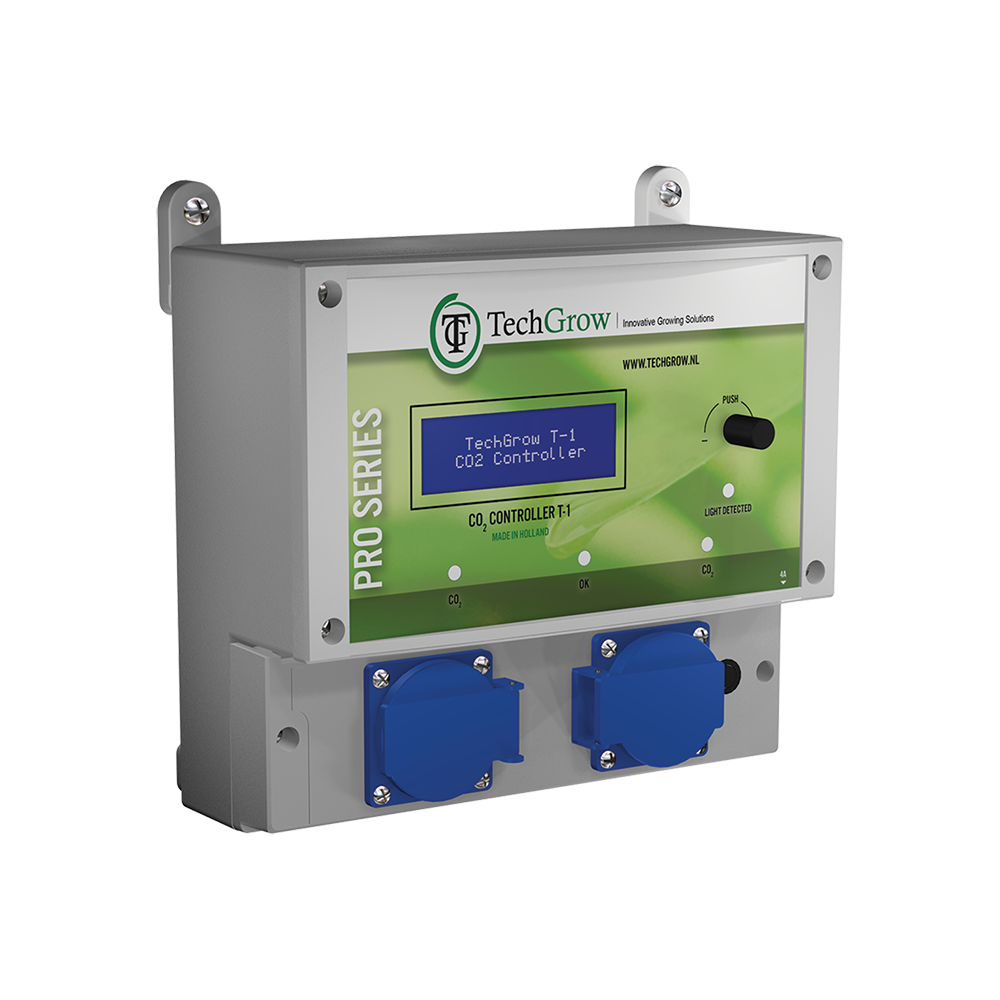

T-1 PRO CO2 Controller

The T-1 Pro CO₂ Controller is the most advanced CO₂ controller on the market.
It helps to accurately create the right CO₂ value in your space.

You can set up the T-1 Pro in a few simple steps, after which you can benefit from all its possibilities!
For example, the T-1 Pro has an automatic CO₂ dosing counter, a log of the past 7 days and an adjustable
pulse dosing to get a stable CO₂ value in your space.

It also has a dosing delay. This function ensures a delayed activation of the
CO₂ dosing in your space. The T-1 Pro is adjustable from 300 to 2000ppm or from 300 to 10000ppm.
On the display you can read the current values ​​of the connected sensors, as well as the min/max values.

The T-1 Pro Controller automatically switches between day and night settings by means of light detection.
Thanks to the built-in calibration function, you can calibrate your CO₂ sensor in the open air if necessary.
The T-1 Pro is supplied without sensor / recommended sensor: S2 (0-2000ppm)

Features:
• Adjustable from 300 to 2,000ppm or from 300 to 10,000ppm.
• Adjustable dosing delay and timer.
• Automatic CO₂ dosing counter
• Dosing log of the dosing counter of the last 7 days.
• Pulse dosing for dosed addition of CO₂.
• Built-in calibration function to calibrate the CO₂ sensor in the open air.
• Depending on the connected sensor(s), the display shows the measured values ​​of CO₂, temperature and humidity.
• Shows the minimum/maximum values ​​of connected sensor(s) in the display.
• The display is refreshed every second.
• Indicator LEDs turn on for CO₂ dosing, light detection and stable climate.
• Possibility to connect various TechGrow devices to each other.
• Memory in case of power failure for setpoint and hysteresis.
• The controller automatically switches between day and night mode by means of the light sensor.
• Automatic switch-off of the display backlight after 60 seconds.
• Automatic detection of cable breakage or poor contact of the connected sensors.
• Connection of the sensor with standard UTP (CAT 6) network cable.
• Various sensors are available separately

Technical specifications:
• Power supply: 100 to 240V
• Consumption: 3W (depending on sensor, without CO₂ source)
• CO₂ set setting range: 300 to 2,000ppm or 300 to 10,000ppm
• CO₂ +/- setting range: 20 to 200ppm (recommended 50ppm hysteresis)
• Measurement time: 1 measurement per second
